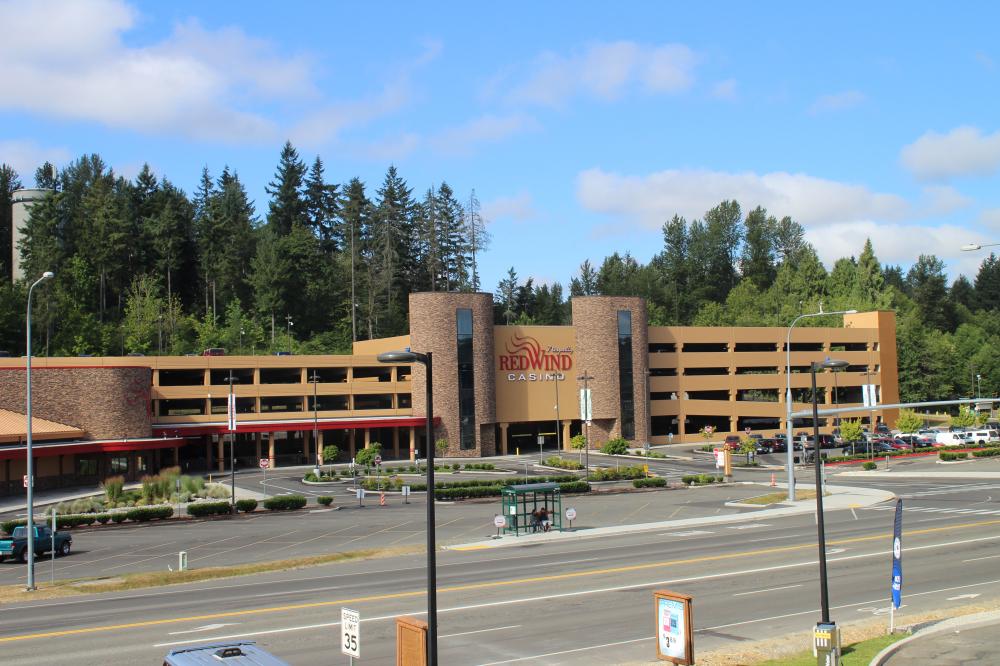

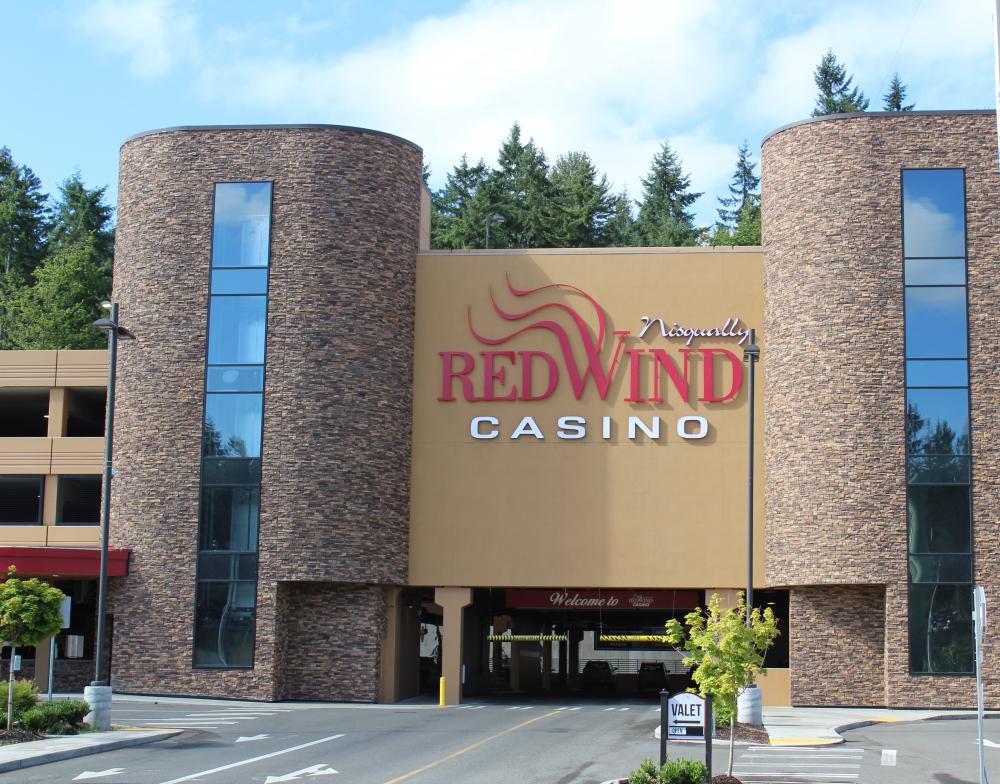

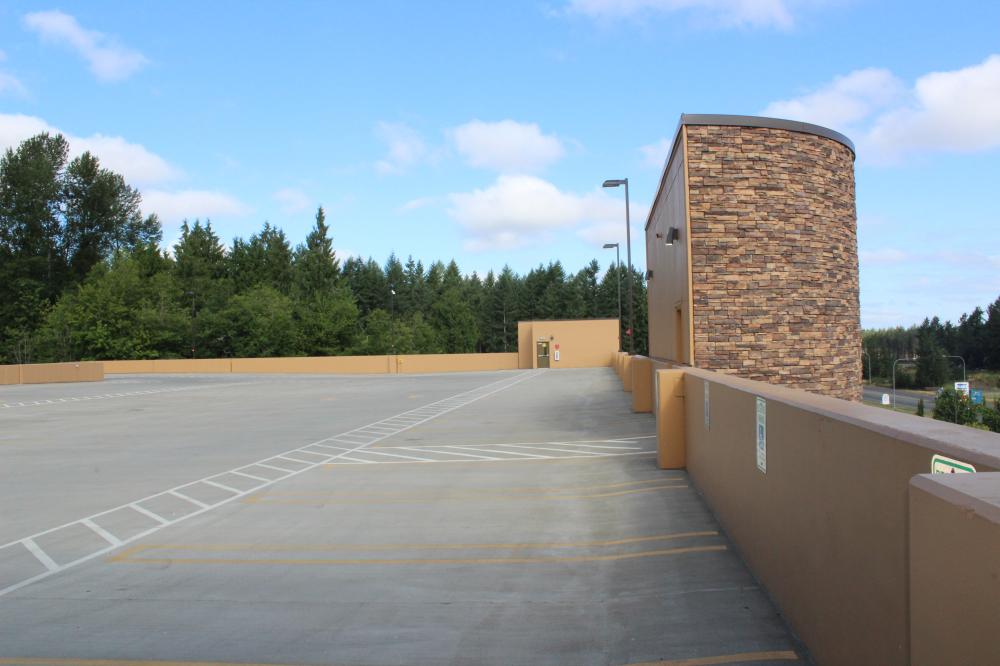

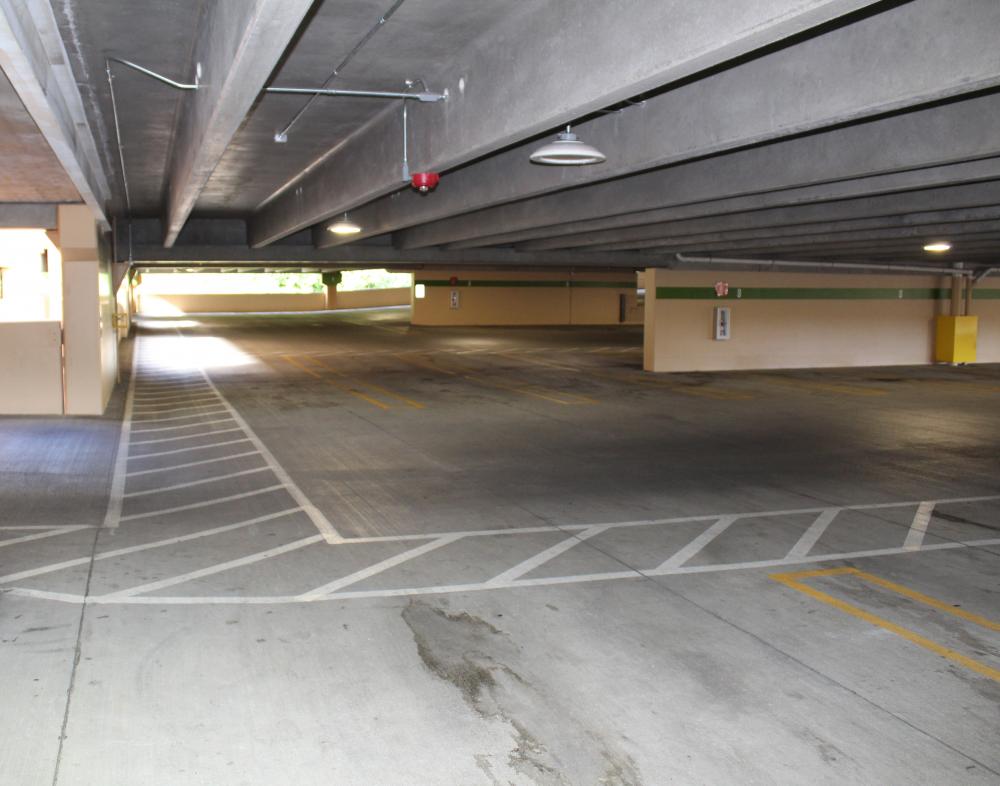

The 620 stall Precast Hybrid garage built in 2004 was not enough to support the growing demand at this casino. An additional 605 stall “All-Precast” expansion took place in 2014. The expansion ascended 5 levels and connected to each of the lower 4 levels of the original garage; making navigating the two combined garages a seamless effort. Elevators and a breezeway corridor were part of the design to improve pedestrian flow.
Double Tees – 288 pcs. – 24”deep Double Tees & 28” Double Tees
Spandrels – 103 pcs. – load bearing and non-load bearing Spandrels
Columns – 31 pcs. – 18” square & 24” square Columns
Inverted Tee Beams – 35 pcs. – 34”x40” Inverted Tee Beams
Ell Beams – 12 pcs. – 34” Ell Beams
Scissor Beams – 6 pcs. – Variable height
Hollow Core – 9 pcs. – 12” thick Hollow Core

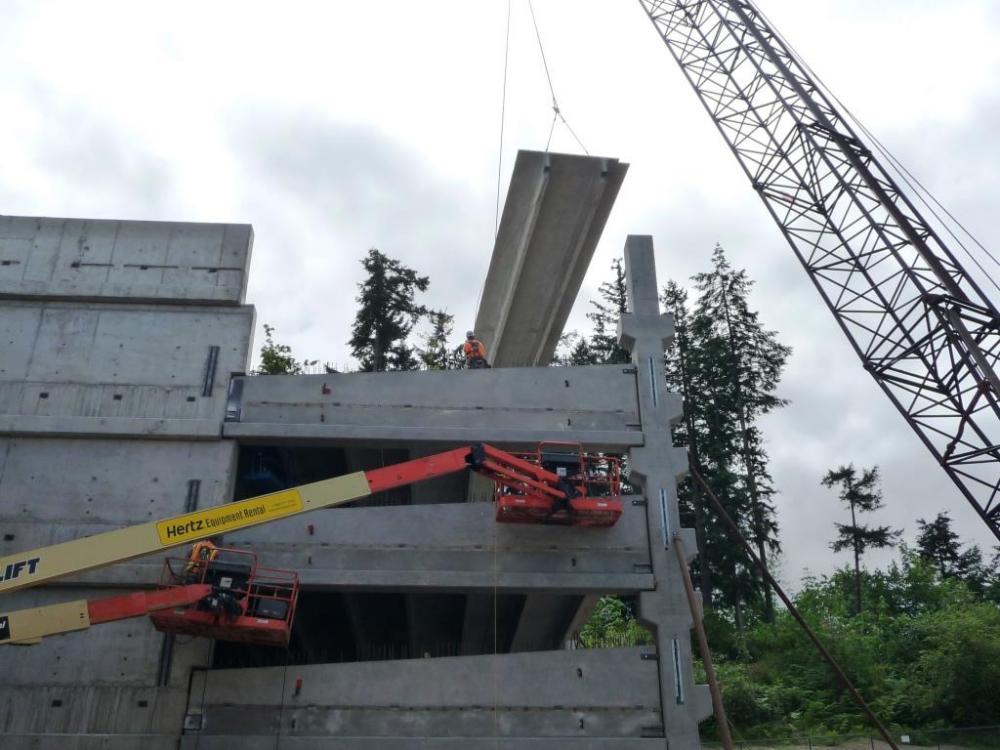

Accelerated Construction Schedule – Precast components were fabricated concurrently with site and foundation work. Erection staging was able to be located across the street to provide uninterrupted placement of each precast product.
Uninterrupted Business – The casino and previous garage were able to continue to serve guests during the expansion.
Integral seismic design – The chord reinforcement to withstand lateral forces during an earthquake were incorporated into the precast elements.
